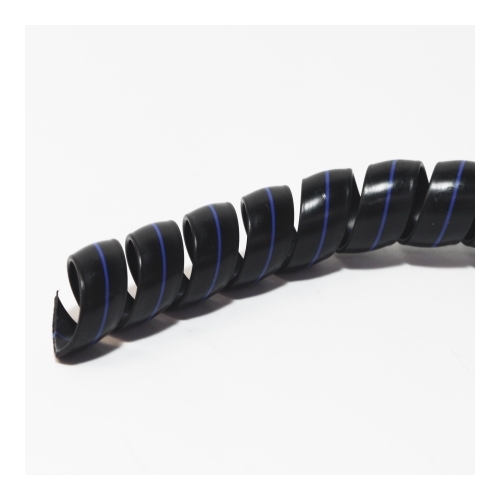

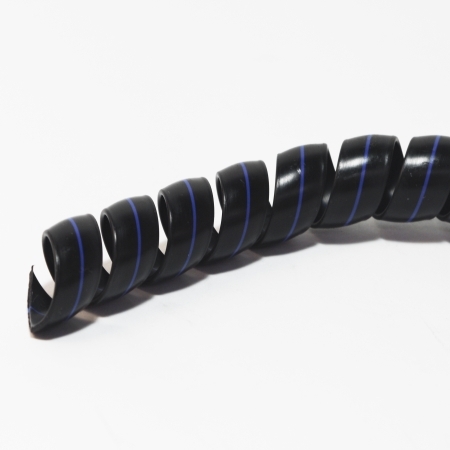

SPIRAL SAFETY GUARD 40MM O.D - Per 50m box

Features
 • Flame retardant high density polyethylene with a domed centre and rounded edges
strip wound
 • An ideal and economical hose wrap for individual hoses or for use in bundling
 • Available as normal fire resistant safety wrap, and also in an approved fire resistant
and anti-static (FRAS) form for use in underground coal mines
 • UV resistant
 • Rounded edges prevent industrial injury
 • Can be retrofitted on site to existing hoses and bundles while in place
 • Self lubricating properties
 • Exceptional anti-crushing and abrasion resistance

Applications
 • Agricultural equipment
 • Mining and quarrying
 • Oil and gas distribution
 • Forestry (colour coding available to order)
 • Welding hose protection
 • Robotic arms and booms
 • Transport
 • Not approved for use on electrical cables

Specifications

 • High density polyethylene copolymer
 • ASTM D792 density 1.03 g/cm2
 • ASTM D648 temperature 103°C
 • ASTM D2863 Oxygen Index 26%
 • International compliance to EN ISO 6805 tests 8030 and 8031
 • FRAS version Approval No. MSHA IC-213/2
 • Not approved for use on electrical cables
 • Working temperature -100°C to +100°C
 • Vicat softening temperature +130°C (Pin Penetration Test)
